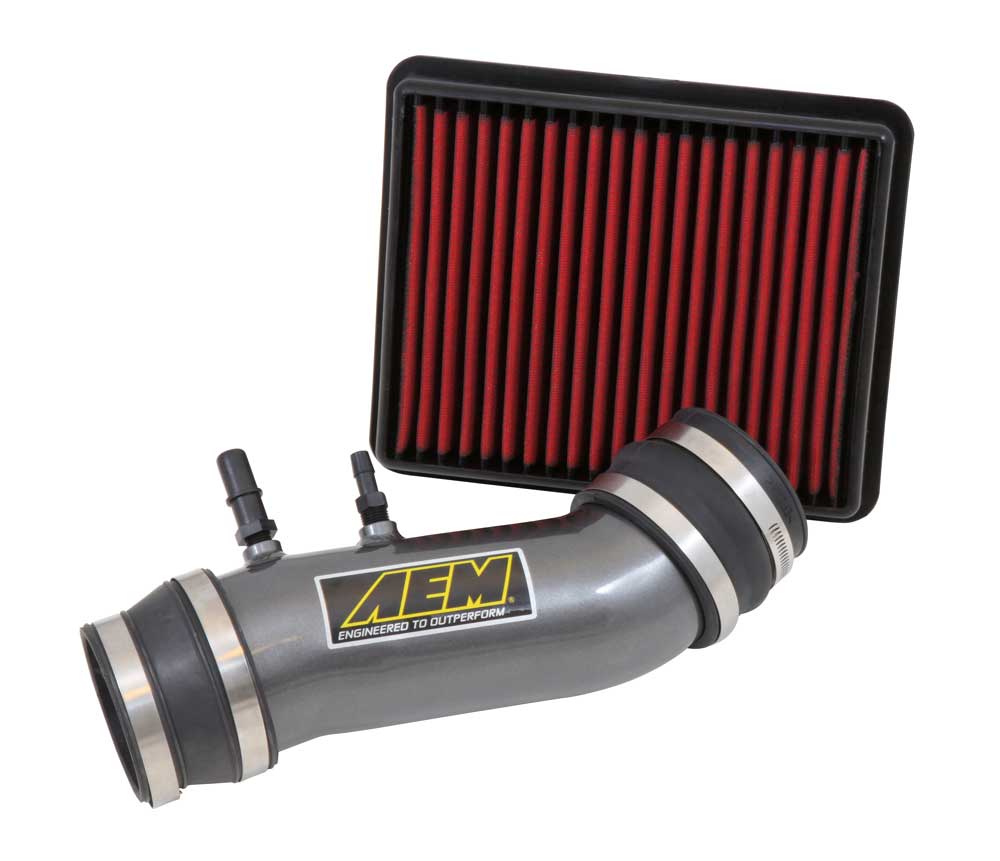

AEM Cold Air Intake System (22-686C)

The AEM 22-686C Performance Air Intake System is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box on some Ford Mustang V6 models. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle's factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine's RPM range. The intake tube is finished with an attractive and durable gunmetal gray powder-coat that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation and requires commonly available tools to do the job. The intake tube accommodates factory emissions control devices including the mass air flow sensor and engine breather tubes. This air intake system is street legal in all 50 US states and comes with AEM's Lifetime Limited Warranty.

• Air Box Included: No
• Air Filter Color: Red
• Air Filter Material: Non-woven Synthetic
• Air Filter Outlet Shape: Not Flanged
• Air Filter Washable: Yes
• CARB EO Number: D-670-23
• Clamp Color/Finish: Natural
• Clamp Material: Stainless Steel
• Clamp Style: Regular
• Clamps Included: 4
• Coupler Color/Finish: Black
• Couplers Included: 1
• Estimated Horsepower Gain: 6 HP @ 4100 RPM
• Intake Pipe Color / Finish: Gunmetal Gray
• Intake Pipe Material: Aluminum
• Intake Pipe Ports: All intake tube ports needed for the specified applications are included
• Mass Air Flow Sensor Adapter Included: No
• Mounting Hardware Included: Yes
• Oil Included: No
• Package Material: Paperboard
• Package Type: Box
• Product Box Height: 8.5 in (216 mm)
• Product Box Length: 18.25 in (464 mm)
• Product Box Width: 14.5 in (368 mm)
• Product Style: AEM Cold Air Intake System
• Product Weight: 6.56 lb (2.98 kg)
• Replacement Filter: 28-20431
• Street Legal In All US States: Yes
• TUV Approved (Europe): No
• Warranty: Limited Lifetime
• Weight: 6.6 lb (3 kg)

No cross references found for this part
