K&N Performance Air Intake System (69-8520TR)

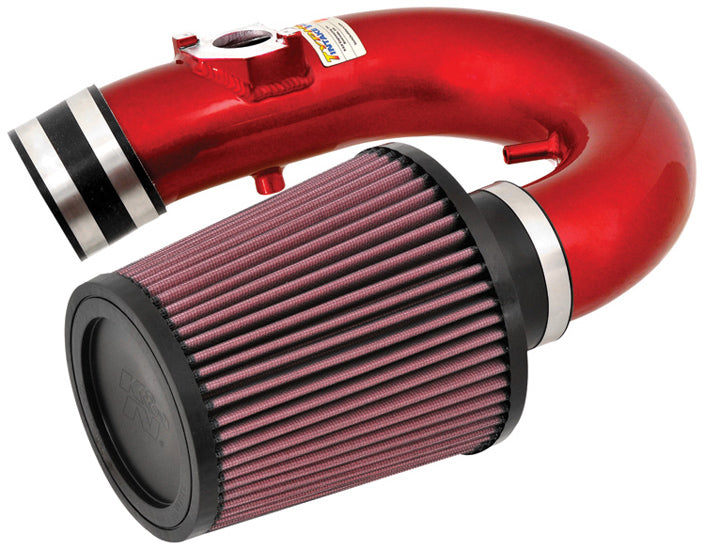

The K&N 69-8520TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Celica GT models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8520TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive red powder-coat finish that's made to last and it accommodates the factory mass air sensor and EVAP vent line. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.

• Air Box Included: No
• Air Filter Color: Red
• Air Filter Material: Cotton Gauze
• Air Filter Outlet Shape: Round
• Air Filter Washable: Yes
• CARB EO Number: D-269-30
• Clamp Color/Finish: Natural
• Clamp Material: Stainless Steel
• Clamp Style: Regular
• Clamps Included: 3
• Coupler Color/Finish: Black
• Couplers Included: 1
• Estimated Horsepower Gain: 5.88 HP @ 6400 RPM
• Estimated Torque Gain: 5 lbft
• Intake Pipe Color / Finish: Red
• Intake Pipe Material: Aluminum
• Intake Pipe Ports: All intake tube ports needed for the specified applications are included
• Mass Air Flow Sensor Adapter Included: Yes
• Mounting Hardware Included: Yes
• Oil Included: Yes
• Package Material: Paperboard
• Package Type: Box
• Product Box Height: 8.5 in (216 mm)
• Product Box Length: 18.25 in (464 mm)
• Product Box Width: 14.5 in (368 mm)
• Product Style: 69 Series Typhoon Kits
• Product Weight: 6.60 lb (3.00 kg)
• Replacement Filter: RU-4870
• Street Legal In All US States: Yes
• System Type: Short-Ram Intake System
• TUV Approved (Europe): No
• Warranty: No-Hassle Lifetime Limited
• Weight: 6.6 lb (3 kg)

No cross references found for this part
